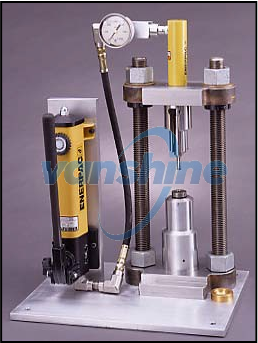

The Manual Tablet Compression Machine, Model MTCM-I, is designed for compaction of powders into tablets one at a time.
MTCM-I 型手动压片机设计用于一次将粉末压制成片剂。
It can also be used for compression of unit-dose powder samples obtained with GlobePharma’s Unit- dose Powder Samplers into tablets for submission to the analytical lab.
它还可用于将使用环球药机的单位剂量粉末采样器获得的单位剂量粉末样品压缩成片剂，以提交给分析实验室。
Double layer tablets as well as a tablet within a tablet can be made, one at a time, using this machine. Compression is accomplished by means of hydraulic pressure applied with a manual hydraulic pump.
使用这台机器可以一次制作双层药片以及包心片。压缩是通过手动液压泵施加的液压来完成的。
One pressure gauge with 3000 lb., 5000 lb. or 10,000 lb. capacity is provided with the machine. The gauge is calibrated against a NIST certified load cell and the calibration curve is provided with the machine.
机器随附一个容量为 3000 磅、5000 磅或 10,000 磅的压力表。该仪表根据 NIST 认证的称重传感器进行校准，校准曲线随机器提供。
Accommodates standard “B”, “D”, and “DS” size tablet tooling without requiring any modifications or special tooling. Round-shaped as well as special-shaped tooling may be used. One set of punch holders (B, D or DS) is supplied with the machine. Additional punch holders and punches and dies are optional.
适用于标准“B”、“D”和“DS”尺寸的片剂工具，无需任何修改或特殊工具。 可以使用圆形和异形工具。机器随附一套冲头支架（B、D 或 DS）。额外的冲头支架和冲头和模具是可选的。
The interchangeable aluminum punch holders help keep the tooling properly aligned during compression.
可互换的铝制冲头支架有助于在压缩过程中保持工具正确对齐。
The machine is compact (16” W x 12”D x 24”H) and is portable (65 lbs.)
该机器结构紧凑（16 英寸宽 x 12 英寸深 x 24 英寸高约等于41CM宽x 31CM深x 61CM高）并且便于携带（65 磅约等于30KG）
