德国艾维卡ERWEKA堆密度检测仪SVM223

德国艾维卡ERWEKA堆密度检测仪SVM223 国内性价比最高

类别:德国艾维卡ERWEKA产品 | 作者:万象 | 浏览数量: | 发布时间:2016-12-21

简略介绍: SVM223 Main introduction 主要介绍 ERWEKA Tapped Density Testers SVM 223 combines two different methods in one single unit. The first test station operates according to the USP method 1. The second test station operates at the same time according to the USP method 2/EP/DIN ISO EN 7 8 7, part 11. 艾维卡振实密度检测仪SVM 223将两种不同的检测方法整合到同一个仪器中。第一

详细介绍
 SVM223 Main introduction主要介绍

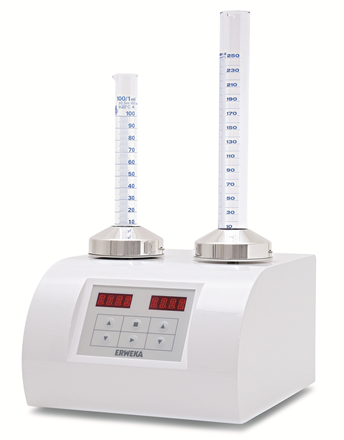

ERWEKA Tapped Density Testers SVM 223 combines two different methods in one single unit. The first test station operates according to the USP method 1. The second test station operates at the same time according to the USP method 2/EP/DIN ISO EN 7 8 7, part 11.
艾维卡振实密度检测仪SVM 223将两种不同的检测方法整合到同一个仪器中。第一个检测工位遵循USP方法1,第二个检测工位遵循USP方法2,EP/DIN ISO EN 787,Part11





SVM 223  Technical Details技术细节


Number of test stations
检测工位

2, one for USP Method 1 and one for USP Method 2 (Pharm.Eur.)
2个,一个用于USP 1 法,另一个用于USP 2法

Stroke height
Strokes / min
冲程高度
冲程数/分钟
14 mm ± 2 mm, 300 strokes/min. ± 15 according to USP method 1
3.0 mm ± 0.2mm , 250 strokes/min.  ± 15 according to USP
method 2,
EP and DIN ISO EN 787/11
USP 1法:14 mm ± 2 mm,300次/分钟±15,
USP 2法:3.0 mm ± 0.2mm,250次/分钟±15



Keypad
按键

Display Two LED displays
2个LED显示屏显示
Pre-selection of test-run
Parameters
预设的测试参数

Time: 1 sec. to 9 hrs., 59min.,
59 sec. Revolutions: 1 to 99.999
时间:1s-9h 59min 59s,转数:1-99.999
100 ml measuring cylinder
Support plate
100ml量筒、支撑板

130 ± 16 g
240 ± 12 g

250 ml measuring cylinder
Support plate
250ml量筒、支撑板
220 ± 44 g
450 ± 10 g
